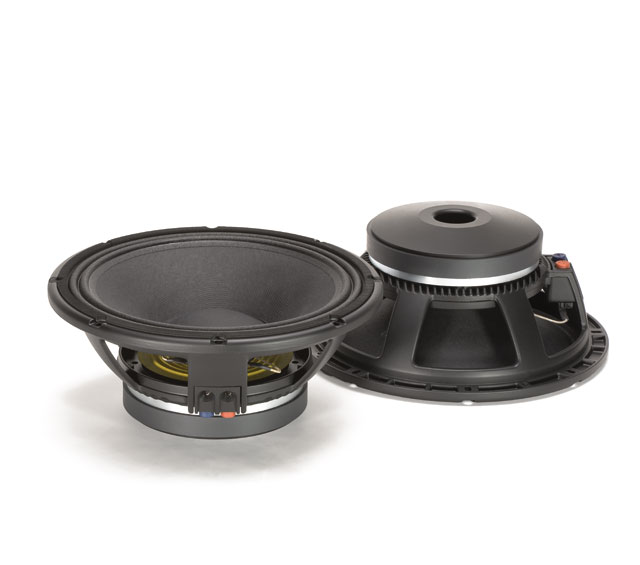

DJ 12 MB300

MID-BASS

High efficiency 12″ mid-bass.

Very high sensitivity, excellent linearity and very low distortion.
Voice coil construction, suspensions and cone materials designed to survive at 400 Watt RMS power.

APPLICATIONS

• A very light moving mass, a curve response linear above 3 kHz makes the DJ 12MB300 a very good solution for high quality two or three way system.
• The aluminum voice coil guarantee a very high efficiency in conjunction to a proper Q factor for a good bass response.

FEATURES

• 3-inch, fiberglass inside/outside copper voice coil
• 800W continuous program power handling
• 98 dB Sensitivity
• 50 Hz – 3 kHz Frequency range
• M-roll surround and exponential cone geometry

GENERAL SPECIFICATIONS

• Nominal Diameter:300 / 12 mm/inch
• Rated Impedance:8 Ω
• Program Power:800 W AES
• Power handling capacity:400 W AES
• Sensitivity:98 dB
• Frequency Range:50 Hz ÷ 3000 Hz
• Effective Piston Diameter:260 / 10.2 mm/inch
• Max Excursion Before Damage (peak to peak):38 / 1.49 mm/inch
• Minimum Impedance:7.2 Ω
• Voice Coil Diameter:76 / 3 mm/inch
• Voice Coil Material: Aluminum
• Voice Coil Winding Depth:16 / 0.6 mm/inch
• Number of layers:2
• Kind of layer: inside / outside
• Top Plate Thickness:10 / 0.4 mm/inch
• Cone Material: No pressed pulp
• Cone Design: Curved
• Surround Material: Polycotton
• Surround Design: M – roll

THIELE/SMALL PARAMETERS

• Resonance frequency:53 Hz
• C resistance:5.4Ω
• Mechanical factor:4.7
• Electrical factor:0.28
• Total factor:0.27
• BL Factor:17 T • m
• Effective Moving Mass:48 g
• Equivalent Cas air load:72 liters
• Effettive piston area:0.053 m²
• Max. linear excursion (mathematical):5.5 mm
• Voice – coil inductance @ 1kHz:0.7 mH
• Half-space efficiency:3.69%

MOUNTING INFORMATION

• Overall Diameter:320 / 12.6 mm/inch
• Bolt Circle Diameter:293-304 / 11.5-12 mm/inch
• Bolt Hole Diameter:6.5 / 0.3 mm/inch
• Front Mount Baffle Cut-out:282 / 11.1 mm/inch
• Rear Mount Baffle Cut-out:284 / 11.2 mm/inch
• Depth:138 / 5.4 mm/inch
• Volume occupied by the driver:2.6 / 0.09 liters/ft³
• Net Weight:7.3 / 16.2 kg/lbs
