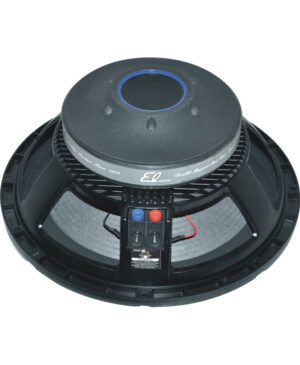

EL 6222
Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 15-inch trasducer wtih in its application range.
The EL-6222 uses a fibre loaded cone assembly along with a high excursion triple roll surround.
This combination provides remarkable strength and a peak to peak maximum excursion of 52mm.
The T-pole also features spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reachees its maximum excursion limits .Forced air venting system.
APPLICATIONS
The EL-6222 is ideal for use in applications where incredible power handling ,long excursion and perfect control is required.
Ideal for high quality professional bass reflex and bass-horn system, incredible when used in double 15″ subwoofer configuration.
The transducer’s low frequency extension, coupled with its extremely low generation of harmonic distortion, also makes it ideal for use within critical listening applications such as studio monitoring subwoofer system.
FEATURES
- 4-inch, fiberglass inside/outside copper voice coil
- 1600W continuous program power handling
- 97 dB Sensitivity
- 30 Hz – 1.5 kHz Frequency range
- Aluminum demodulation ring
- Forced air ventilation and 14mm top plate for minimum power compression
- Triple-roll surround and corrugated straight cone geometry
GENERAL SPECIFICATIONS
- Nominal Diameter: 380 / 15 mm/inch
- Rated Impedance: 8 Ω
- Program Power: 1600 W AES
- Power handling capacity: 800 W AES
- Sensitivity: 97 dB
- Frequency Range: 30 Hz ÷ 1500 Hz
- Effective Piston Diameter: 340 / 13.4 mm/inch
- Max Excursion Before Damage (peak to peak): 50 / 2 mm/inch
- Minimum Impedance: 6.3 Ω
- Voice Coil Diameter: 100 / 4 mm/inch
- Voice Coil Material: Copper
- Voice Coil Winding Depth: 23 / 0.9 mm/inch
- Number of layers: 2
- Kind of layer : Inside / Outside
- Top Plate Thickness: 12 / 0.55 mm/inch
- Cone Material: No pressed pulp
- Cone Design: Straight
- Surround Material: Polycotton
- Surround Design: Triple roll
THIELE/SMALL PARAMETERS
- Resonance frequency: 36 Hz
- DC resistance: 6.8Ω
- Mechanical factor: 7.5
- Electrical factor: 0.27
- Total factor: 0.25
- BL Factor: 24.8 T m
- Effective Moving Mass: 150 g
- Equivalent Cas air load: 160 liters
- Effettive piston area: 0.091 m²
- Max. linear excursion (mathematical): 8.0 mm
- Voice – coil inductance @ 1kHz: 2.2 mH
- Half-space efficiency: 2.6%
MOUNTING INFORMATION
- Overall Diameter: 393 / 15.5 mm/inch
- Bolt Circle Diameter: 371-376 / 14.6-14.8 mm/inch
- Bolt Hole Diameter: 6.5 / 0.3 mm/inch
- Front Mount Baffle Cut-out: 352 / 13.9 mm/inch
- Rear Mount Baffle Cut-out: 360 / 14.2 mm/inch
- Depth: 158 / 6.2 mm/inch
- Volume occupied by the driver: 4.3 / 0.15 liters/ft³
- Net Weight: 12.6 / 27.7 kg/lbs
